Bollinger Bands Indicator

Post by zcsoka » Tue May 12, 2020 12:19 pm

The Bollinger Bands indicator, which will be available in the Bookmap Marketplace as soon as it gets approved.

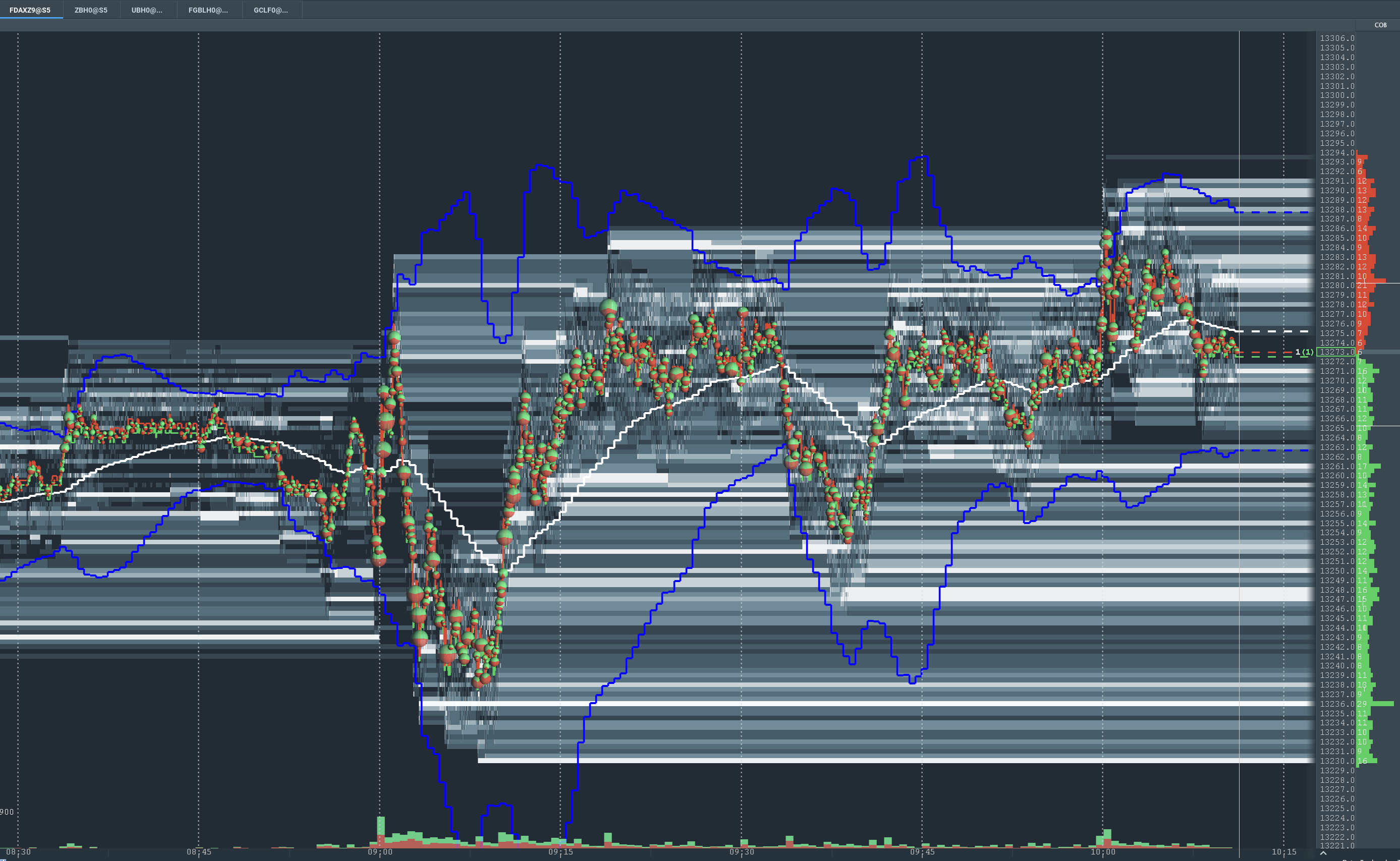

The indicator displays the Bollinger Bands based on Single or Exponential Moving Averages:

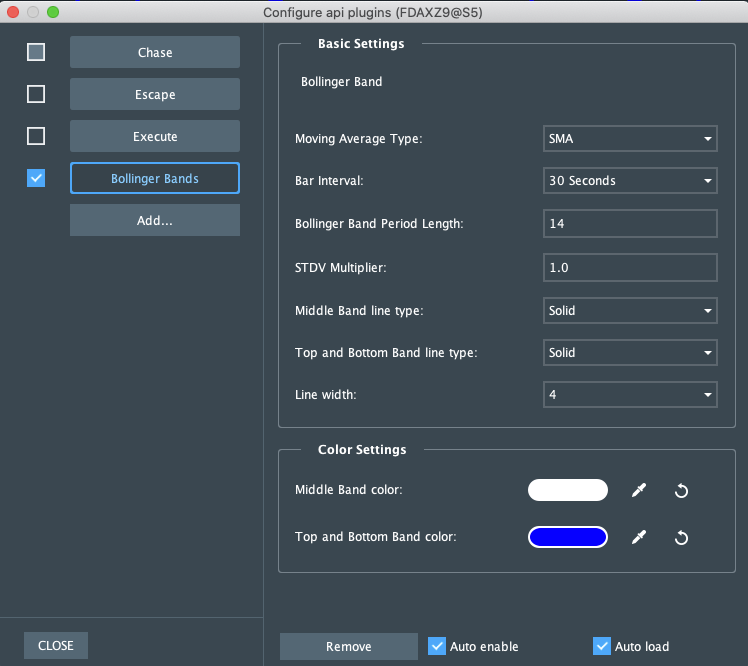

The settings panel lets you to configure the Bollinger Bands Indicator as described below:


(Please do not forget to hit Enter if you change numerical fields)

Moving Average Type:  The Moving Average used for the calculations (SMA - Simple Moving Average or EMA - Exponential Moving Average)
Bar Interval: The bar interval for the calculation. It is focusing on day traders and scalpers therefore shorter periods are available (1s, 2s, 5s, 10s, 30s, 1m, 5m)
Bollinger Band Period Length: The number of bars to use for the Keltner Channel calculation. (It must be a round number)
STDV Multiplier: Standard Deviation Multiplier to be able to scale the top and bottom bands. (It must be a decimal number)
Middle Band line type: Drawing type (Solid, Short Dash, Long Dash, Dot Dot-dash)
Top and Bottom line type: Drawing type (Solid, Short Dash, Long Dash, Dot Dot-dash)
Line Width: Drawing thickness of the line
Color Settings: Choose the color for all lines.

AndreyR
Posts: 289
Joined: Mon Jul 09, 2018 11:18 am
Has thanked: 14 times
Been thanked: 51 times

Re: Bollinger Bands Indicator

Post by AndreyR » Thu May 28, 2020 2:48 pm

The topic has been moved to Addons subforum.
